650nm Class 2 Laser Module O21549

650nm Class 2 Laser Module O21549

$4.99 $15.99
Shipping calculated at checkout.
Style

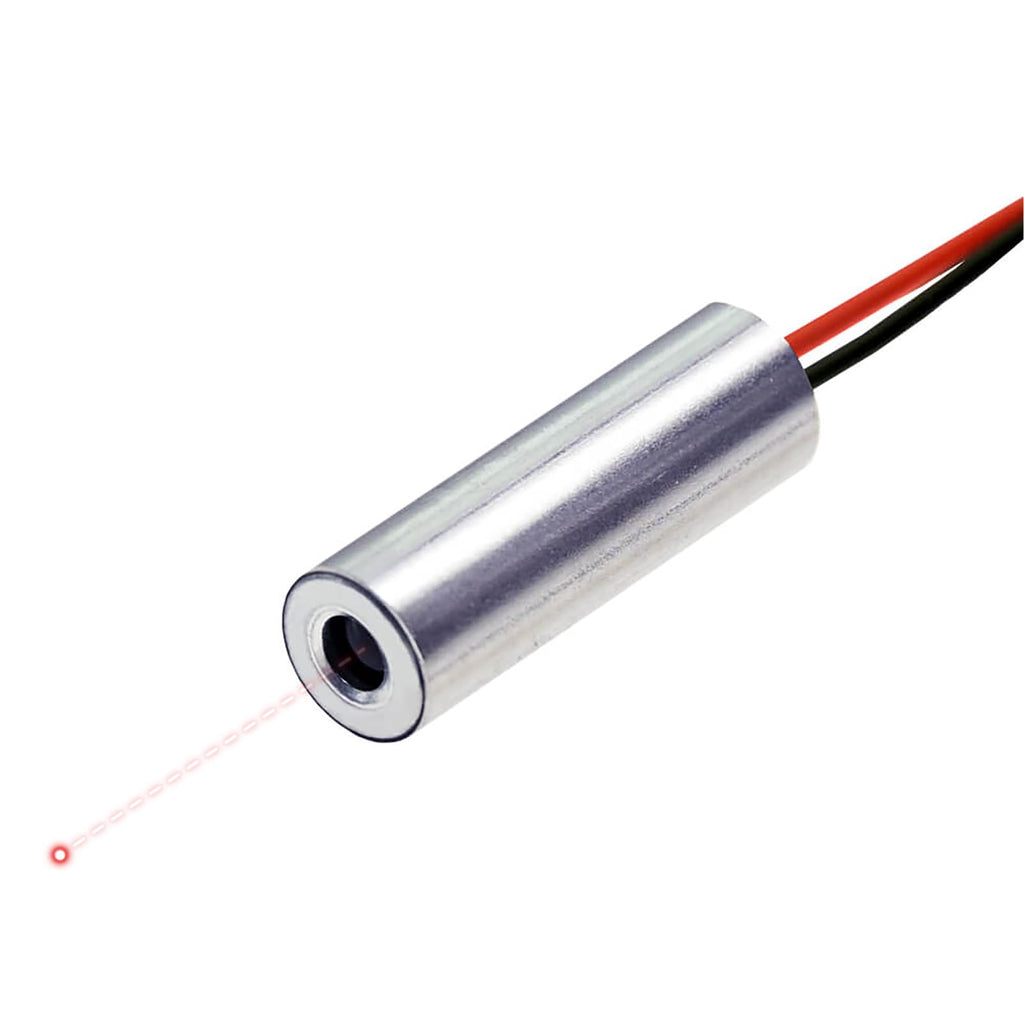

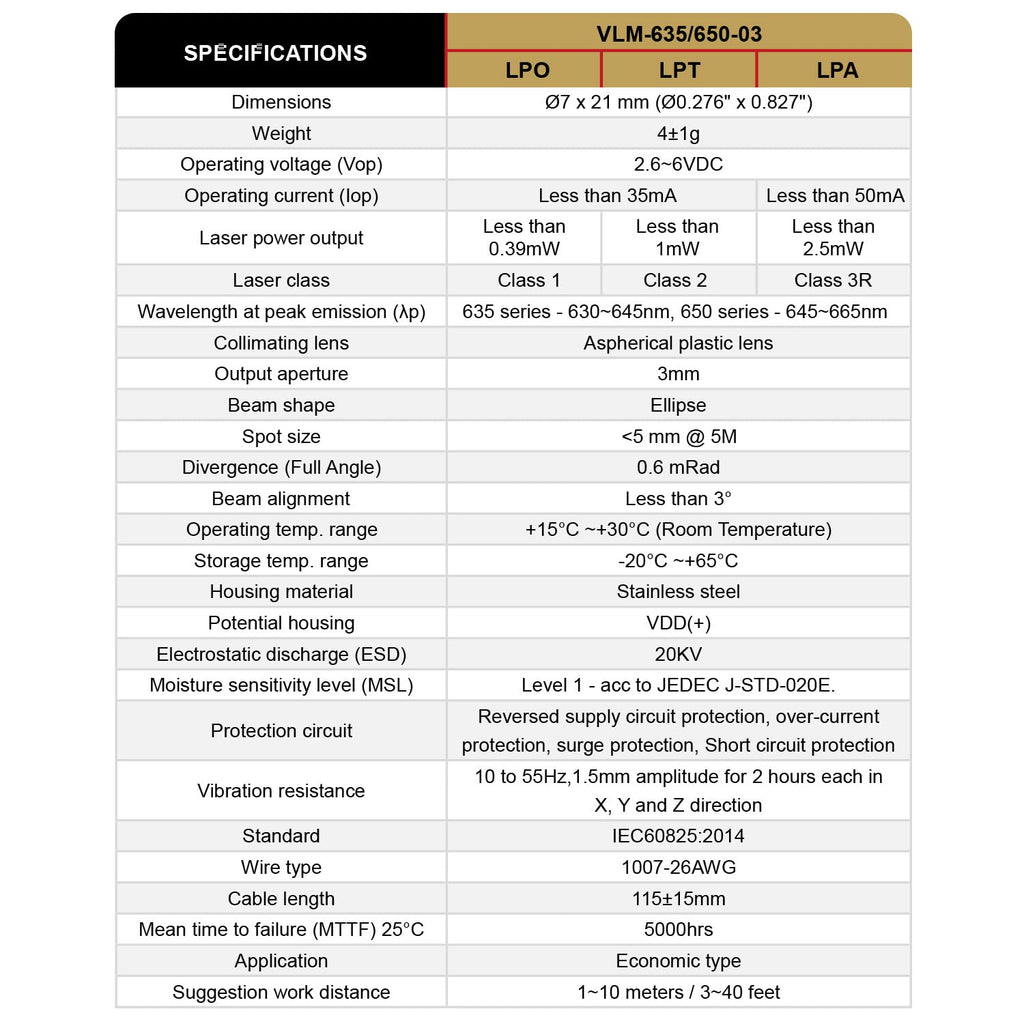

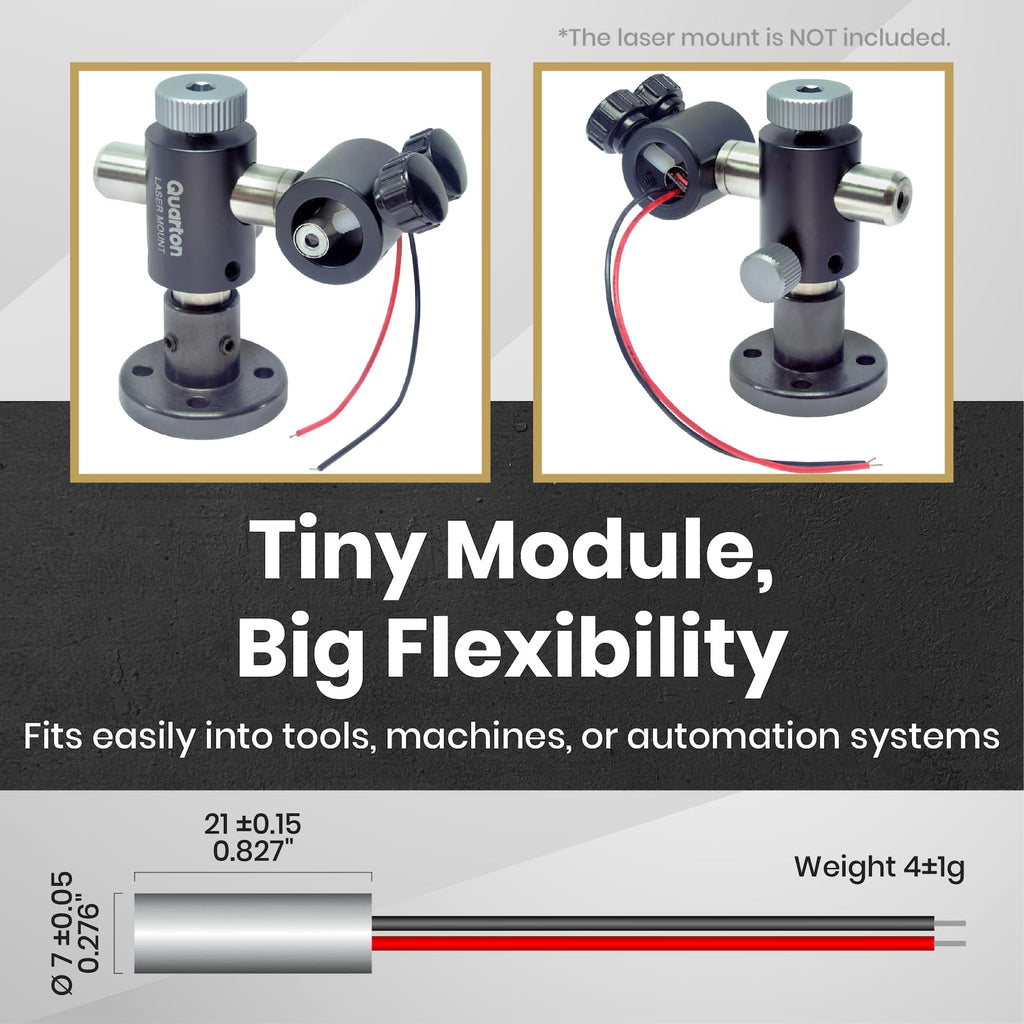

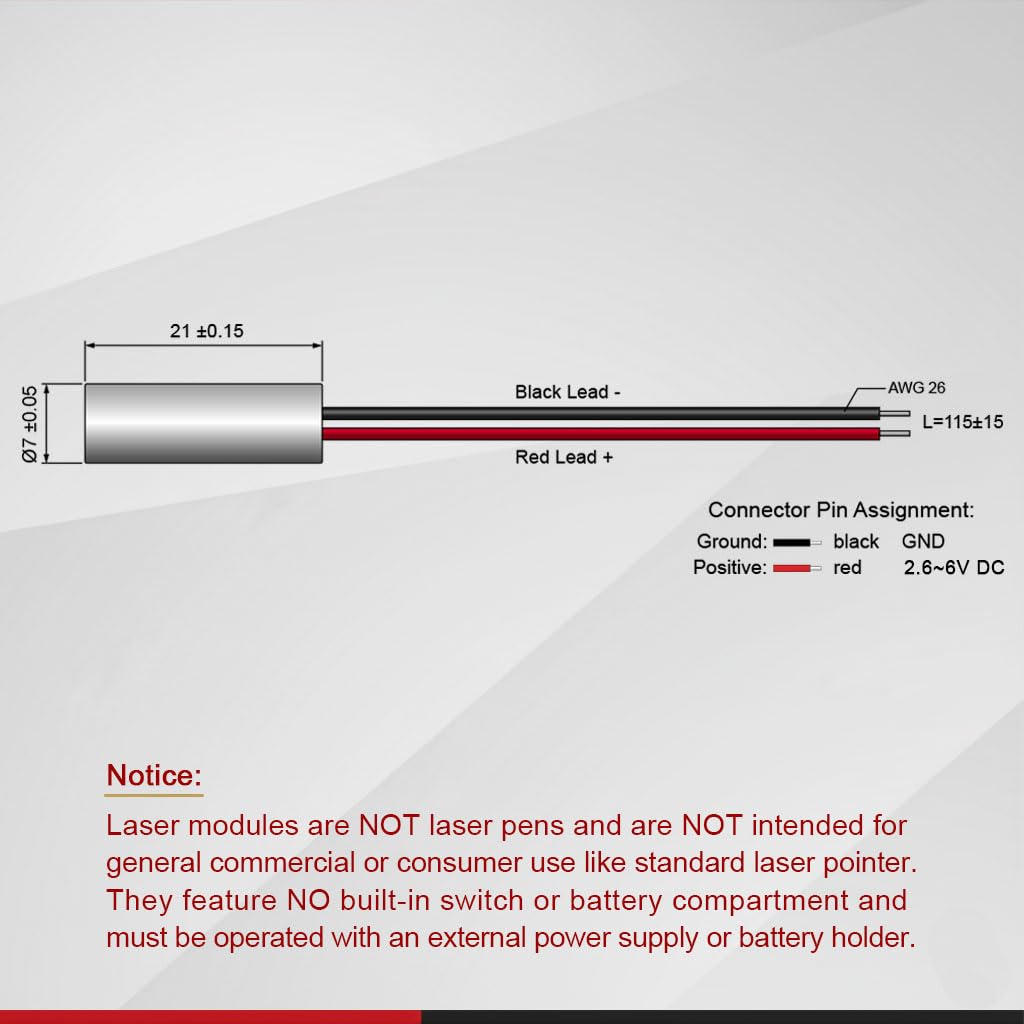

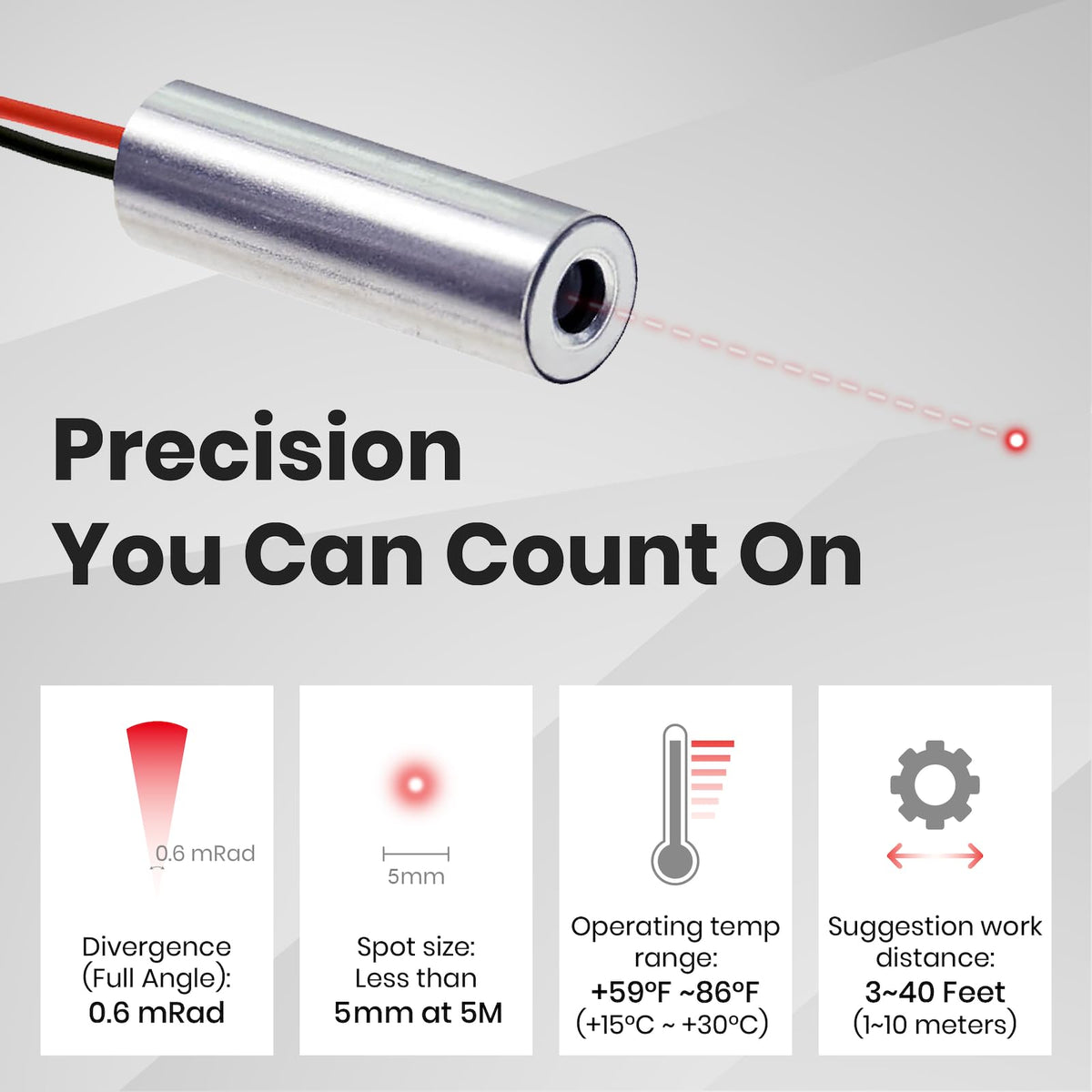

Brand: Quarton Material: Zinc Color: Silver Product Dimensions: 0.83"L x 0.28"W Style: VLM-650-03 LPT - Red laser, Class 2 - Integrated Design: This 650nm red dot laser module, laser head boasts engineering and durability. Its integrated aspherical lens, laser diode, and APC (Auto-Power-Control) driver circuit deliver consistent, Class 2, less than 1mW (Class II, <1mW), 2.6~6 VDC. - Versatile Use Across Industries: Suitable for multi-industry applications, including positioning, measuring, laser sighting, and pointing. With cost-effective specifications, it is well-suited for a wide range of industries, including wood, metal, stone processing, textiles, food, automotive, and medical sciences. - Energy-Efficient & Indoor-Optimized: This 650nm red laser delivers key advantages - lower cost, reduced power consumption, and easier manufacturing. Ideal for battery-powered devices, it ensures reliable performance in low-light/indoor environments despite being less visible than green lasers. - Delivering a 650nm wavelength with a beam divergence (Full angle) of 0.6 mRad, this laser module produces a concentrated, oval beam that ensures alignment and reliable visibility for indoor applications. Mean Time to Failure (MTTF): 5,000 hours at 77°F (25°C) - Compact, Economical, and Ready for Integration: Measuring just D7×L21mm (D0.276 x L0.827 inches), this economical solution integrates optics, diode, and driver circuit into a compact package. Please note: the module requires wiring to an external power source (not included) for proper operation. - Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
